Do you need a giant molding machine? The S24 beats all records!

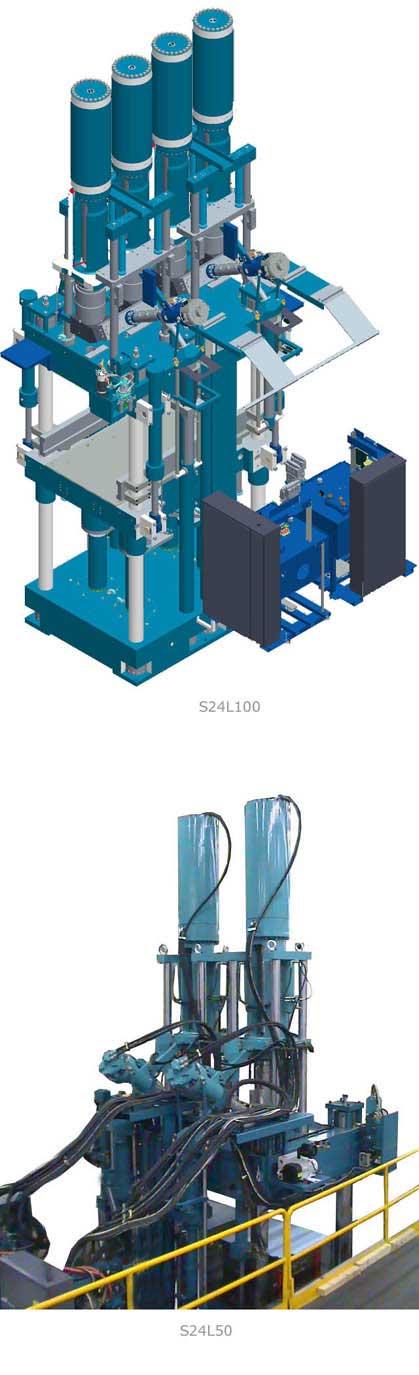

Designed for the manufacture of high-voltage insulators (550 kV), this is one of the largest presses made by REP.
The dimensions of the parts to be injected explain the huge size of the press: 660 mm in diameter, 2600 mm long, molded in one go.
The production of a complete insulator takes place, therefore, in between one and four cycles, significantly increasing productivity and the reliability of parts.
The S24 exists in two versions: L50 or L100
Technical Features S24L50
| Closing Unit | ||
| Closing Force | kN | 24 000 |
| Opening Stroke | mm | 900 |
| Clamp maxi. useful | mm | 21 |
| Distance between platens | 2015 | |
| Distance between guide columns | mm | 1680 X (2 x 840) |
| Mold height min/max | mm | |
| without sliding platen | 650 / 1090 | |
| Heater plates: | | |
| Width x length | mm | 1500 x 3000 |
| Injection unit | 2 injection units | |
| Extrusion L/D =15 | ||
| Screw Diameter | mm | 56 |
| Extruder speed | rpm | 0 - 140 |
| Heating power (400 V) | kW | 6,4 x 2 |
| Injection | ||
| Shot capacity | cm3 | 25 000 x 2 |
| Injection pressure | bar | 1500 |
| Heating power (400 V) | kW | 12,6 |
| Hydraulic Unit | ||
| Type of pump | variable displacement | |
| Pump output in charge | 1/mn | 138 x 2 |
| Working pressure | bar | 250 |
| Motor power | kW | 55 x 2 |
| Tank capacity | l | 400 x 2 |
| Space requirement | ||
| Width x depth on the floor | mm | 5600 x 4000 |
| Max height | mm | 7622 |
