Welcome to Microinjection with REP!
LSR Micromolding

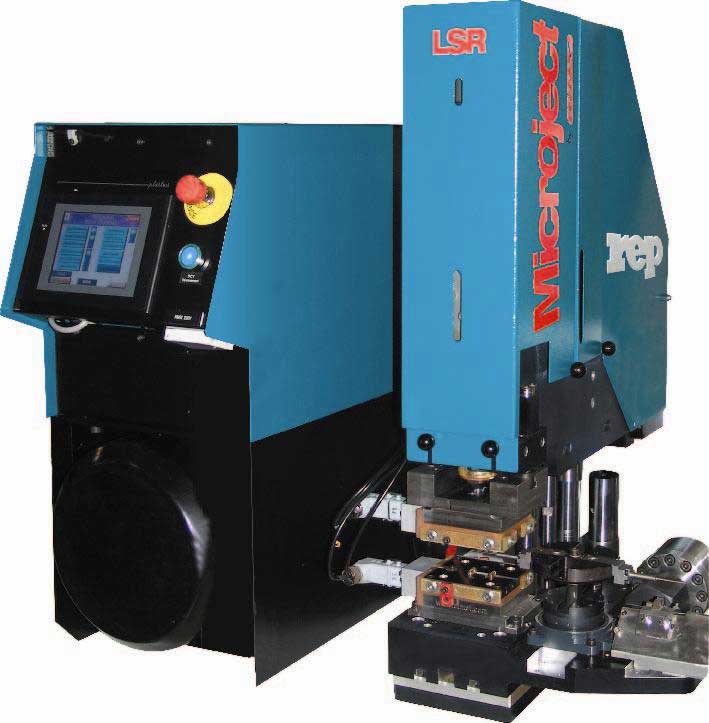

The Microject is designed for molding and overmolding small parts. It can be easily integrated to automated assembly lines and suits to prototyping or lab testing.
Perfectly adapted to very small precision parts, or small eries, it is also available for thermoplastic micromolding and can be adapted to all kinds of rubber materials.
Advantages
REP’s know-how applied to micropresicion Useability and flexibility: no water supply, no compressed air required ! The only requirement is a connection to the power supply (220V). Cost and space saving
Technical Features
MICROJECT LSR | |||||||||||
| Max. injection capacity | cc | 3.9 | 5.6 | 7.7 | 10 | ||||||
| Clamping force | t | 4 | |||||||||
| Mold dimensions | mm | 140x90x80 | |||||||||
| Space requirement | m | 1.2 x 0.75 | |||||||||
| Machine installation time* | min | 30 | |||||||||
*and a very short mould set-up time
Read more: DeviceMed / April 2011 (in French)
